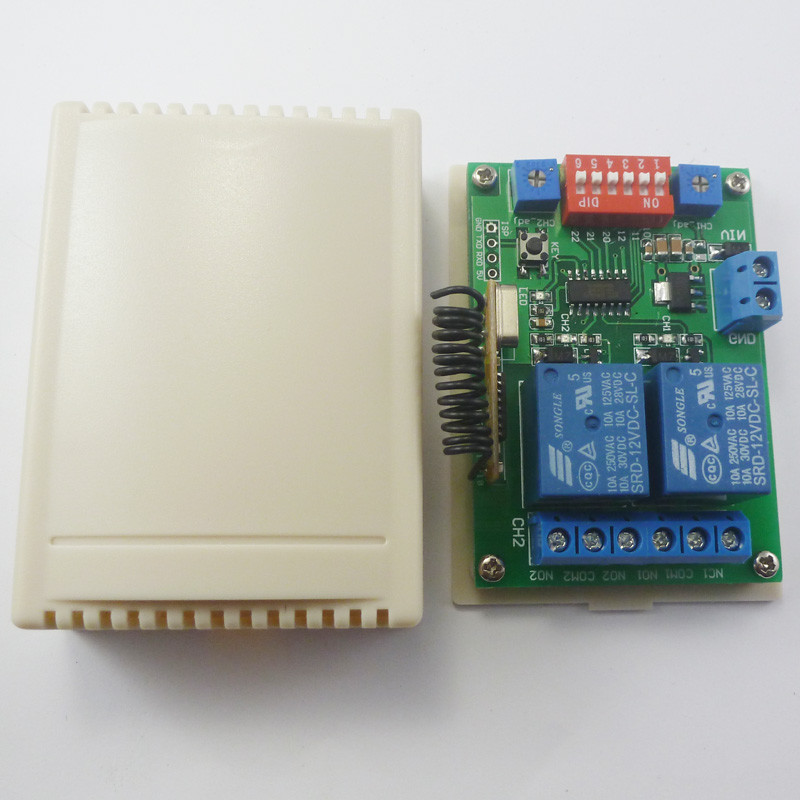

8 CH Multi-Function Design DC 12V RF ASK Wireless Remote Controller Delay Kits
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Canton-electronic |
| MPN | CE029A*4+TB422*1 |
| Country/Region Of Manufacture | China |
| Type | Relay |

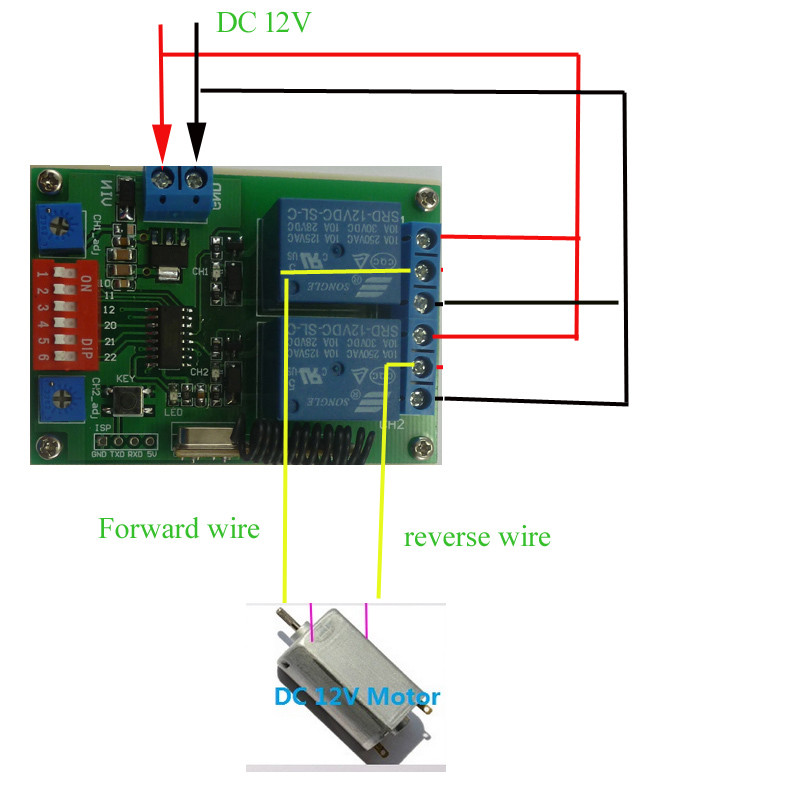

Compatiable Spare remote :https://stores.ebay.com/RF-Wireless-Electronics-Technology/Fixed-Code-Transmitters-/_i.html?_fsub=5534337015&_sid=1103009655&_trksid=p4634.c0.m322. Packing list : 1 pcs 8 button transmitter remote ; 4 pcs 2 channel DC12V Receiver relay board ; (all user guide was provided in this item description , there is no extra manual ) Typical applications: DC 12V Home lighting system Remote control switch Smart Home / Home Automation LED lighting Fluorescent lamp DC 12 DC Motor,RS360 Wiring Diagram 1: DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V Wiring Diagram 2: DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment Features: 1 Operating voltage: DC 9-13V (recommended DC 12V , 5V version can be customized if conntact ) 2 Operating Current: All relays close,about 14MA; one relay open,about 43MA;two relay open,about 71MA 3 Operating frequency: 433.92MHz (315M version can be customized) 4 Receiver sensitivity : -108dBm 5 Decode : learning code, can be adapted EV1527 / PT2262(Click here)and compatible remote control, you can store up to 16 remote control 6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay 7 Size(Including housing): 75*54*28mm; 8 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC ,10A/12VDC . Advantage : 1: Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 OR Pt2262 remotes to re-learn; Work mode Working mode user guide : 1: Each Channel have 4 working mode : Delay time , Toggle mode (singnal Self-locking), Momentary Mode ( singnal None-locking) , Latch mode (singnal Inter-locking) . 2: working mode of each channel need to be set individually , 2 channels can have 10 different working mode combinenatoin , Detail : one channel is Momentary , the other channel is Latch ; one channel is Momentary , the other channel is Momentary ; one channel is Momentary , the other channel is Toggle ; oone channel is Momentary , the other channel is Delay time ; one channel is Toogle , the other channel is Delay Time ; one channel is Toogle , the other channel is Latch ; one channel is Toogle , the other channel is Toggle ; one channel is Latch , the other channel is Delay Time ; one channel is Latch , the other channel is Latch ; one channel is Delay time , the other channel is Delay Time ; 3: Time of each delay mode is proportionally increased. For example, you want to channel 1 to delay 50 seconds , 500seconds and 5000 seconds, you can first seting channel 1 is set to "delay 1 (Delay Mode 3), turn around (CH1_adj) adjustable resistance, so that channel 1 delay 50 seconds; if the mode is set to "delay 2 (mode 4), the delay time becomes 500 seconds, if the mode is set to" delay 3 (mode 5), the delay time becomes 5000 seconds 4 With a suitable screwdriver and gently rotating adjustable resistance;Clockwise, increasing delay,Counter-clockwise, the delay is reduced Glossary: NO : Relay normally open contact COM : Relay common contact NC : Relay normally closed contact Open : NO connection COM, NC disconnect COM Close : NO disconnect COM, NC connection COM Momentary : Press the Transmitter button A, the receiver Channel 1 is Open, release button A; the receiver Channel 1 is Close, the same as B ,Every Channel is Independent ; Toggle : Press transmitter button A for 1 time , the receiver Channel 1 is Open, press button A again, the receiver Channel 1 is Close, the same as B. Every Channel is Independent ; Latched : Press transmitter button A, the receiver Channel 1 is Open, the Channel 2 is Close. Press transmitter button B, the receiver Channel 2 is Open, the Channel 1 is Close. Delay : Press the Transmitter button A, the receiver Channel 1 is Open,After a set time delay, the receiver Channel 1 is Close, the same as B ,Every Channel is Independent; If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close Adapterremote control (learning remote control): Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist) Step 1 (into the learning mode): Press the button (about 1 second), LED off; Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values Transmitter: Qty : 1 pcs 8 Button Fixed code remote ; Features / Specifications : 1. 8 buttons; 2. High stability, SMT chip, frequency stabilization SAW, ultra-high-frequency transistor; 3: Large power; Technical Data : TransmitterModule No.:TB4223; Power supply : 12V 23A battery(not included ), please buy battery from here : https://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313.TR3.TRC2.A0.H0.X12V+23A+battery.TRS0&_nkw=12V+23A+battery&_sacat=0 . Operating current:28-33mA; Oscillation mode:SAW resonator; Modulation mode:ASK/OOK; Operating frequency:433.92MHZ; Encoding format: EV1527 fixed code ; Transmit power : 200mW ;
