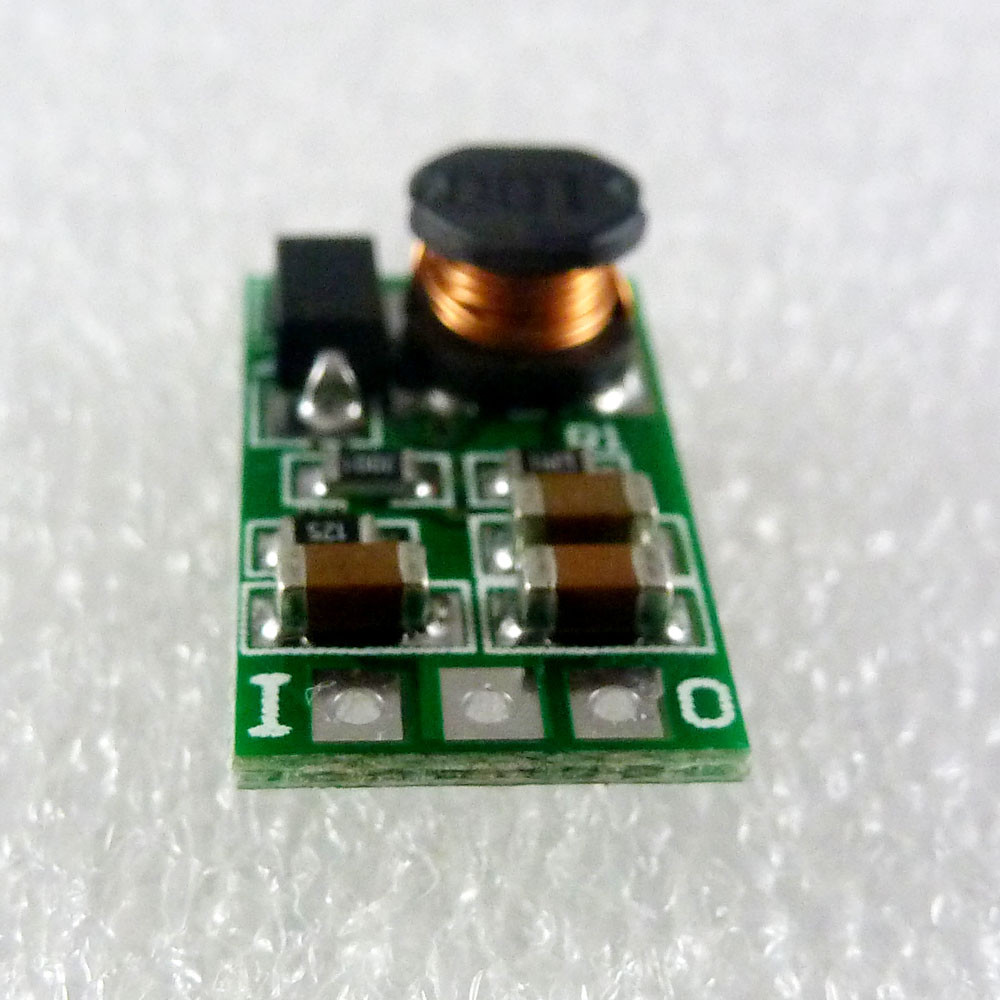

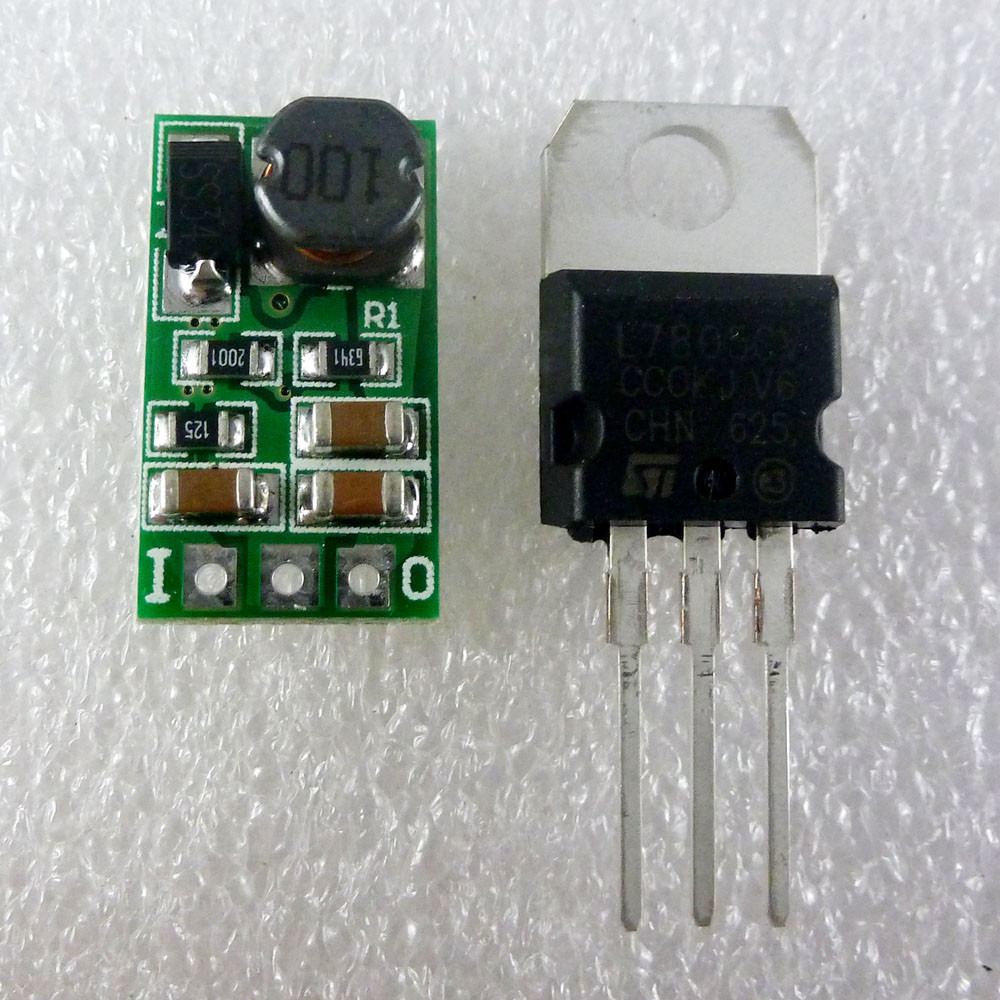

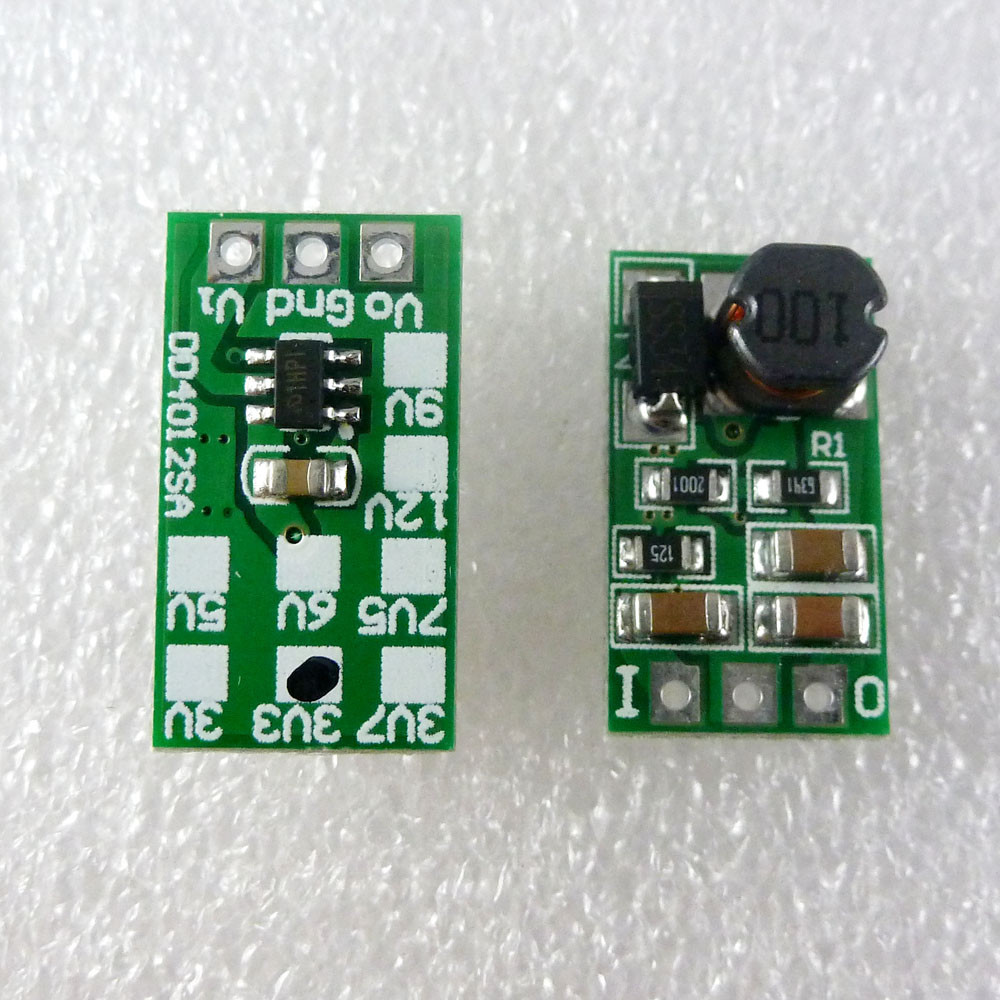

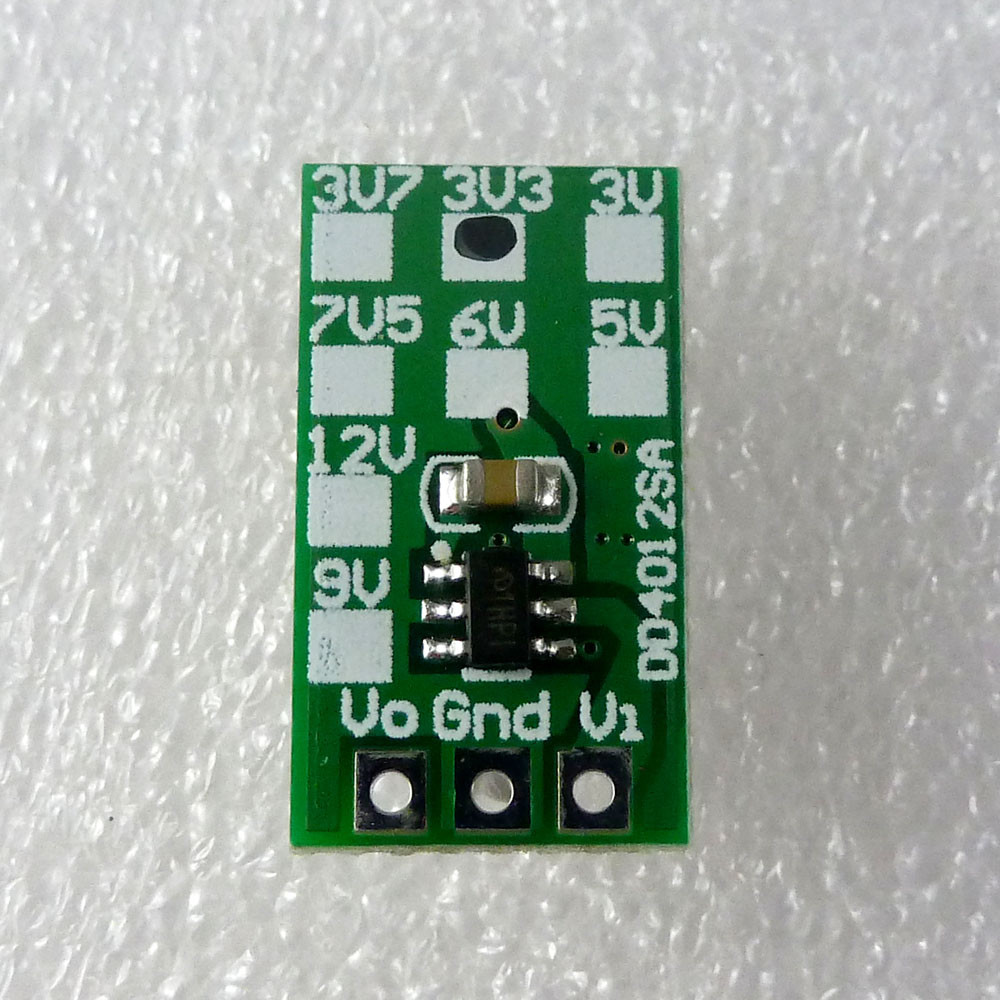

0.8A DC 15V 18V 24V to 12V dc dc converter Buck module for LED PLC RS485 Relay
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Canton-electronics |
| MPN | Does Not Apply |
| Model | DD4012SB_12V |
| Type | Module |
Product Description Product Name: 0.8A DC 15V 18V 24V 36V to 12V dc dc converter Buck module for LED PLC RS485 Relay Module No.: DD4012SB_12V Packing list: 1 PCSDD4012SB_12V 14V-40V to 12V DC DC Buck Converter Module Description: Input voltage 14~40V,output 12V Maximum output current 0.8A DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% . Quiescent current: about 1.5MA Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection. 2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly Size 18.3mm x 10.2mm x 6.7mm( small) Weight : about 1.1g(Very light) Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself Applications: 12V Motor Toy LED WIFI Router Switch Network equipment Multimeter instrumentation CCTVcamera Electric toys Smart home / home automation Distributed Power Systems Pre-Regulator for Linear Regulators Battery powered equipment Audio amplifier
